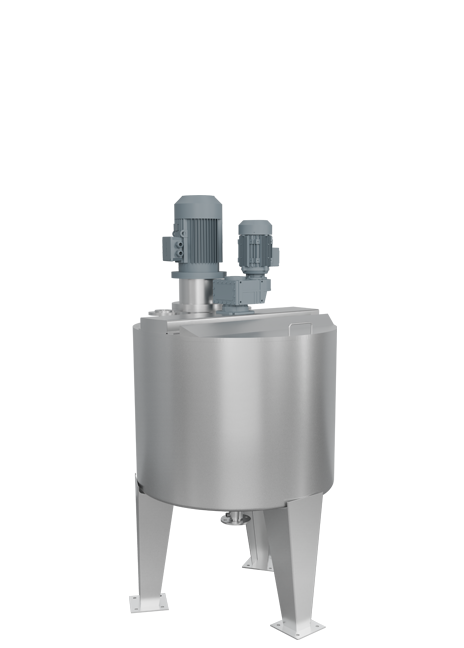

Turbo Mixer
Turbo mixers are process equipment designed for the homogeneous mixing, dissolving, and processing of liquid, semi-fluid, and viscous products. Depending on product characteristics and process requirements, they can be manufactured with different agitator types, speed options, and capacities.
Widely used in the food, chemical, cosmetics, and pharmaceutical industries, these mixers help achieve the desired consistency and homogeneity while ensuring consistent product quality throughout production processes. Their sanitary design and robust construction provide long-lasting and reliable operation.
By ensuring uniform distribution of components within the product through high efficiency mixing technology, the mixers optimize production times while also increasing process efficiency. Depending on requirements, they can be equipped with frequencycontrolled systems, high- or low-speed systems, or systems with multiple agitators.
Technical Specifications
| Capacity | 0.2 m³ - 2 m³ |
|---|---|
| Material | AISI 304L - AISI 316L |
| Agitator Type | Anchor Type - Custom-Built for the Process |
| Jacket Type | Rollbond |
| Heating System | Water, Steam, Gas |
| CIP Cleaning | Optional |
| Surface Finish | 4N Satin Finish - 2B Matte Finish |
| Weighing System | Optional |
| Insulation | Rock Wool - Rubber Foam |
| Manway | Sanitary Manway |
| Speed Control | Variable Frequency Drive - Optional |
| Motor Power / Speed | 2.2 kW - 11 kW / 1,500-3,000 rpm |
| Mechanical Seal | Double-Acting |
| Capacity | Min | Max |
|---|---|---|
| Diameter (mm) | 750 | 1500 |
| Shell Height (mm) | 500 | 1500 |
| Volume (m³) | 0.25 | 2 |
