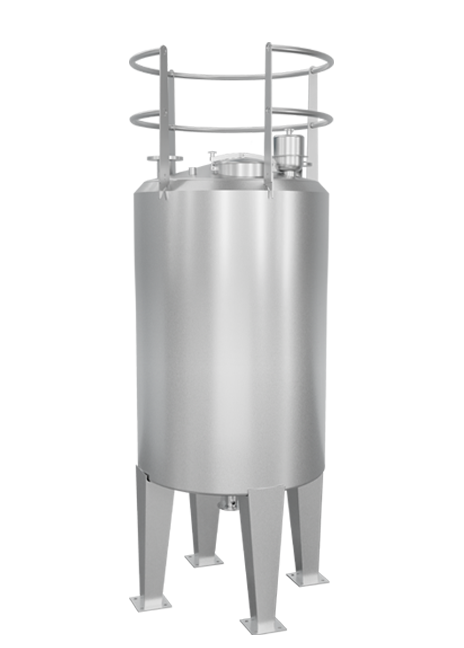

Storage Tank
Storage tanks are high-quality process equipment designed for the safe storage of milk, oil, glucose, water, syrup, and similar liquid products under hygienic conditions. Widely used in the food, chemical, and cosmetics industries, these tanks enable products to be stored for extended periods while preserving their physical and chemical properties.
Offering maximum hygiene and durability in production processes, the tanks are manufactured from AISI 304L or AISI 316L stainless steel in compliance with international food safety standards. Custom designs with insulation, jackets, and integrated automation systems can also be supplied according to requirements.
Technical Specifications
| Capacity | 0.5 m³ - 80 m³ |
|---|---|
| Material | AISI 304L - AISI 316L |
| Jacket Type | Rollbond |
| Heating System | Water, Steam, Gas |
| CIP Cleaning | Optional |
| Surface Finish | 4N Satin Finish - 2B Matte Finish |
| Weighing System | Standard |
| Insulation | Rock Wool - Rubber Foam - Polyurethane |
| Manway | Sanitary Manway |
| Capacity | Min | Max |
|---|---|---|
| Diameter (mm) | 750 | 4000 |
| Shell Height (mm) | 500 | 8000 |
| Volume (m³) | 0,5 | 80 |
