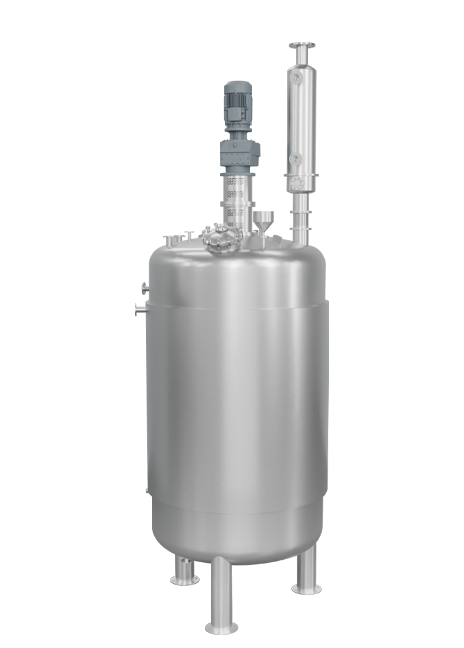

Blender
These stainless steel process units are designed to mix different products and components homogeneously at specified ratios, bring them to the required process conditions, and store them under controlled conditions.
They can be manufactured with different capacity and agitator options according to product characteristics and process requirements. Their sanitary design provides reliable, long-lasting operation; depending on requirements, the systems can be equipped with heating and cooling systems, weighing systems, and PLC automation.
Technical Specifications
| Capacity | 10 - 40 m³ |
|---|---|
| Jacket System | Half Pipe / Dimple |
| Material | AISI 304L - AISI 316L |
| Agitator Type | Custom-Built for the Process |
| Manway | Pressure-Rated Manway |
| Mechanical Seal | Gland Packing |
| Auxiliary Equipment | Vertical Column Heat Exchanger |
| Capacity | Min | Max |
|---|---|---|
| Diameter (mm) | 750 | 3000 |
| Shell Height (mm) | 1000 | 5000 |
| Volume (m³) | 10 | 40 |
